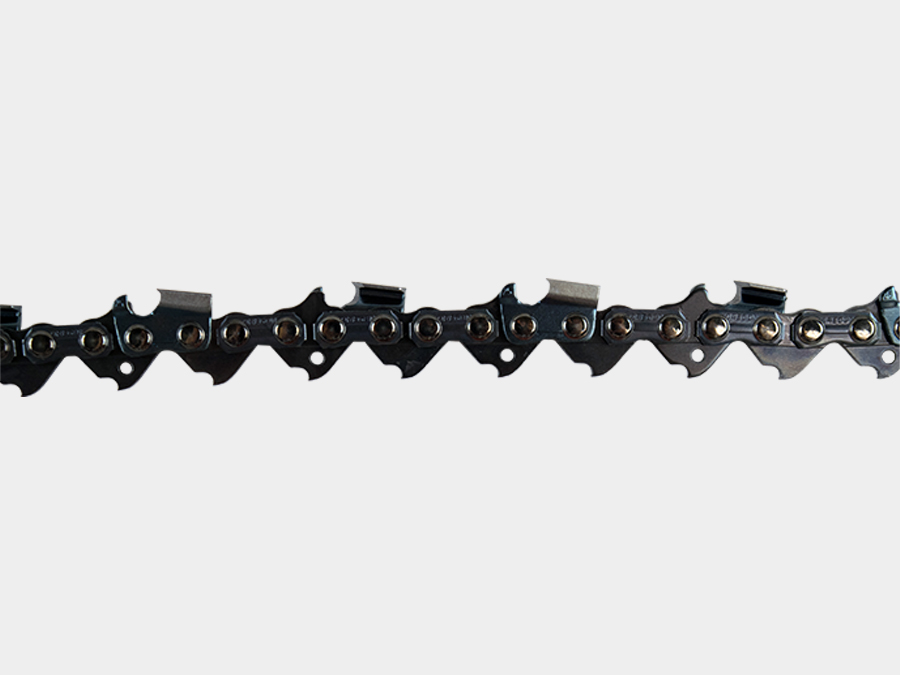

20LPX Style Chain

ECHO's 20LPX replacement chain is of standard sequence and designed with professional loggers and forest workers in mind. Power and precision are the name of the game with this chain. The low-vibration full chisel cutters deliver ultimate performance, while the offset depth gauges prevent cutters from driving into the sidewall, which in turn provides a smoother cut. The enhanced cutter coating provides superior protection against corrosion resistance.

TOP FEATURES
  • Full chisel cutters with offset depth gauge
  • Specially-coated cutters
  • Top plate filing indicators
COMPATIBLE WITH

16 in. 20LPX66CQ is compatible with 16F0LD3366C bar
18 in. 20LPX72CQ is compatible with 18F0LD3372C bar
20 in. 20LPX78CQ is compatible with 20F0LD3378C bar

OPTIONS AVAILABLE

  • 20LPX66CQ - CS-501P (66 drive links)
  • 20LPX72CQ - CS-501P (72 drive links)
  • 20LPX78CQ - CS-501P (78 drive links)

Features

Replace your dull chain with sharp OEM quality

Full chisel cutters with offset depth gauge
Prevents cutters from driving into the sidewall providing a smoother cut
Specially-coated cutters
Offer extended protection
Top plate filing indicators
Make sharpening easier
0.050 in. gauge and .325 in. pitch

Specs

Gauge 0.050
Bar Length Fit 16
Pitch .325"
Cutter Type Standard Sequence
File Size 3/16"
Drive Link 66
Low Kickback No
Pkg. Qty (1) 20LPX66CQ 16" Chain

Technical Documents
